Simple gateway Series

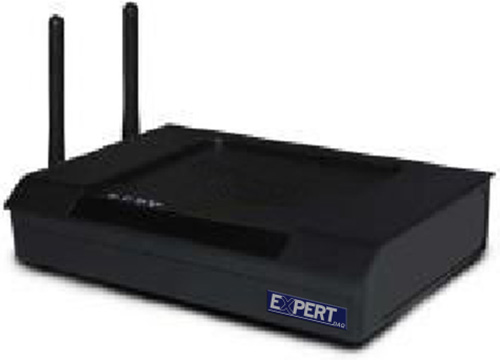

EX92405M2-1                                                                                                            802.11b/g/n High Power AP/Router


Features:



■ 2.4GHz IEEE 802.11n 2x2 MIMO

■ Complies with IEEE 802.11bg

■ Data-rate up to 300Mbps

■ High power and High sensitivity

■ Wide coverage

■ RF output power adjustable

■ Firewall, URL/IP/Port/MAC filtering

■ Firmware upgrade via HTTP

■ Support Gateway, Bridge and WISP mode

■ Multiple ESSID

■ QoS enhancement-WMM

■ TCP/UDP/ICMP/ARP protocol stack

■ Virtual DMZ, Port forwarding

■ Easy setup wizard

■ Web-based utility

■ Passive PoE





Specifications:



Standard

IEEE 802.11b/g/n

Chipset

RTL8196C

Flash/SDRAM

2M / 16M

Antenna

2x 5dBi antennas detachable

Frequency

2.400~2.483GHz

Output Power

802.11b: up to 28 ± 1 dBm

802.11g: up to 26 ± 1 dBm

802.11n: up to 26 ± 1 dBm

Sensitivity

-96dBm @ 802.11b

-91dBm @ 802.11g

-91dBm @ 802.11n

Security

Security

WPA(TKIP with IEEE 802.1x)

WPA2(AES with IEEE 802.1x)

WPA Mixed

802.1x authentication

Operation Temperature

-20°C ~ 60°C

Dimension(mm)

147 x 98 x 30 mm

Operation Mode

Gateway

Bridge

Wireless ISP

Wireless Mode

AP

Client

WDS

AP+WDS

Data Rate

802.11b: 11, 5.5, 2, 1Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps

802.11n(20MHz): up to 144Mbps

802.11n(40MHz): up to 300Mbps

Power requirement

DC Jack: 12V DC

PoE: 12V Passive PoE

Storage Humidity

10% ~ 90% (Non-condensing)

Interface

RP-SMA antennas connector x 2

RJ-45 WAN port x 1

RJ-45 LAN ports x 4
