EX9000/EX9000-Modbus Series

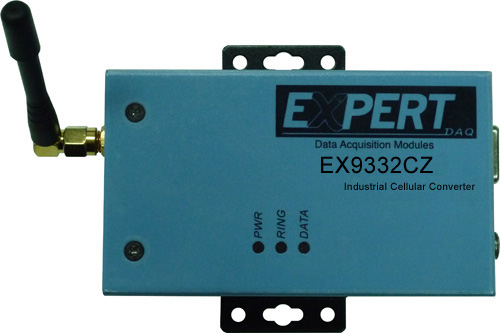

EX9332C-Z                                                                            Industrial Quad-Band GSM/GPRS (Modem)data converter


Features:





n Quad-Band: GSM 850/900/1800/1900 MHz

n SMS (Text and PDU mode) support

n Standard DB9 RS232 serial interface

n Standard AT-CMD

n Data Rate: UL 42.8kbps/DL 85.6kbp

n FAX support





Specifications:


Products Name EX-9332DZ
Frequency GSM 850/900/1800/1900 MHz
GPRS Connectivity GPRS Multi-Slot Class 10 ; GPRS Mobile Station class B
Data Rate DL: max. 85.6 kbps ; UL: max. 42.8 kbps
Coding Scheme CS-1, CS-2, CS-3 and CS-4
SMS Text and PDU ; cell broadcast
FAX Group 3, class 1, 2
Voice FR, HR, EFR and AMR
Output power ≒2.5W
Configuration AT-CMD
Interface DB9 RS232
SIM 3V/1.8V
Antenna Female SMA
Voltage DC5~25V (12V)
Temperature Operation: -25 to +80C ; Storage: -40C to +85C
Humidity 5% ~ 95% relative humidity
Dimension 75x50x16 mm
Weight 200g
PCB Dimension N/A
