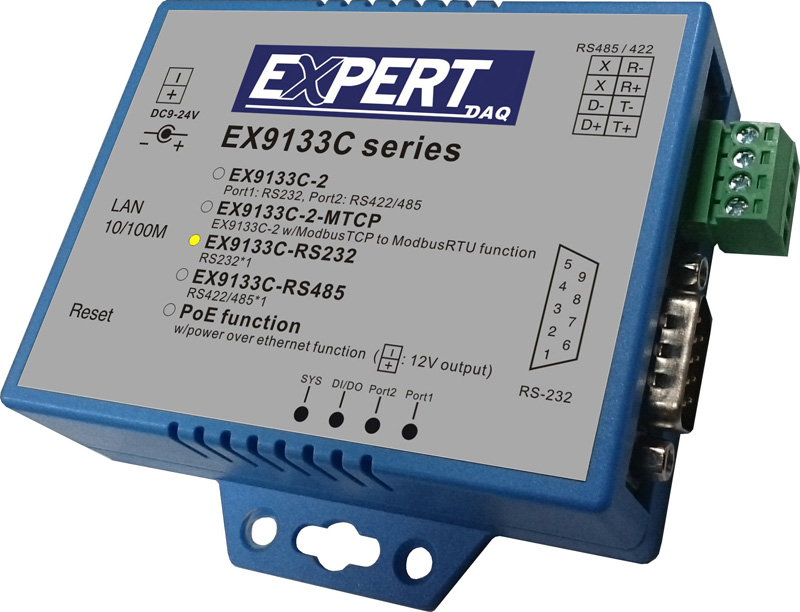

EX9133C-RS232-POE
Serial
to Ethernet Converter (RS232*1)
w/PoE |
|
|
|
Key Specifications/Special Features:
■ ARM-Cortex-M4 CPU
■ HTTP Browser Setup (IE)
■ Speed: 10/100 Mbps (Auto Detect)
■ Protocol: ARP, IP, ICMP, UDP, TCP, HTTP,
DHCP
■ Security: Login Password
■ Port：RS-232 * 1
■ IP Search Utility
■ Virtual COM
■ DC9~24V, 300mA@12VDC; DC Jack/Terminal
Block
■
PoE: Supply Power Source
approximate 12V after PoE Splitter |
|
|
Specifications:
|
Hardware
|
CPU : ARM Cortex™-M4 32-bit processor , 120MHz
RAM：128K
bytes SRAM
ROM：512K
bytes Flash ROM
|
|
Ethernet
|
Port Type：RJ-45
Connector
Speed：10
/ 100 Mbps ( Auto Detect )
Protocol：ARP
, IP , ICMP , UDP , TCP , HTTP , DHCP
Mode：TCP
Server / TCP Client / UDP / Virtual Com / Pairing
Setup：HTTP
Browser Setup
Security：Login
Password
Protection：Built-in
1.5KV Magnetic Isolation
|
|
Serial Port *
1
(RS-232
* 1)
|
Port：RS-232
* 1
Speed：300
bps ~ 115.2 Kbps
Parity：None
, Odd , Even , Mark , Space
Data Bit：5
, 6 , 7 , 8
Stop Bit：1
, 2
RS-232
pins：Rx,
Tx, DTR, GND, DSR, RTS, CTS
15KV ESD for all signals
|
|
Digital I/O * 16 TTL (optional)
|
|
Watch Dog Function
|
|
IP Search Utility
|
Support Windows
2000 /2003 / XP / Vista / 7 / 8 / 10
|
|
Virtual COM
|
Support Windows 2000 /2003 / XP / Vista / 7 / 8 / 10
|
|
Firmware On-line Updated Via Ethernet
|
|
Power
|
DC 9 ~ 24V, 300mA @12VDC;
DC Jack/ Terminal Block (optional)
|
|
LED Lamp
|
SYS,
DI/DO, Port2, Port1
|
|
Environment
|
Operating Temperature: -10℃
~ +70℃
Storage Temperature : -20℃~
+85℃
|
|
Dimension
|
115
*
90
* 27 mm ( W * D * H )
|
|
Weight
|
140 gm
|
|
Din-Rail and Panel mounting options
|
|
Regulatory Approval
|
CE / FCC
|
|
|
