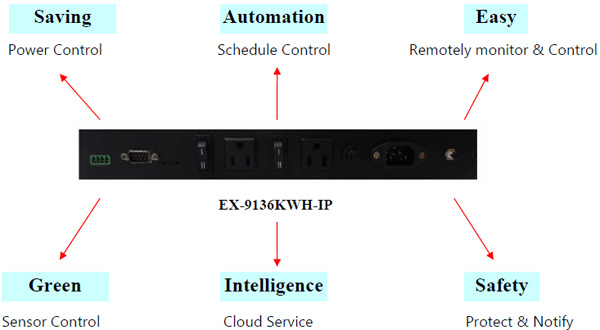

Features:
■
Power management system
■
Real time monitoring
■
Over current & power control
■
Email Warning
■
Power usage control for daily/
weekly/ monthly
■
Alarm trigger to server
■
Thermal & humidity control
■
Historic data querying
■
Schedule control
■

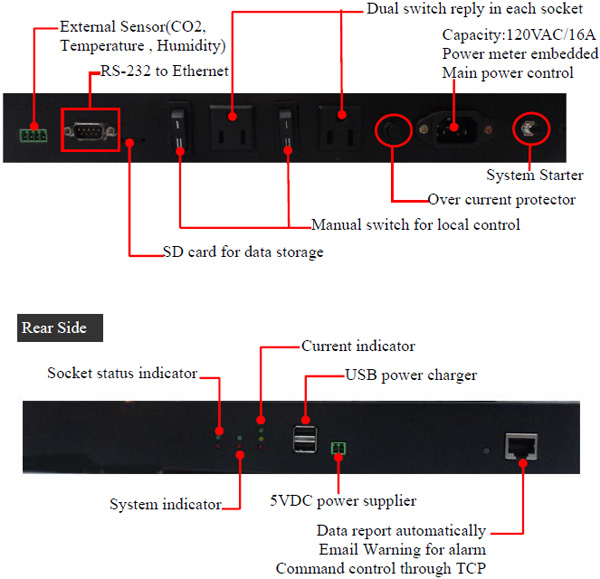

Dual switch by manual control
■
Remote control through Ethernet
■
Dual switch reply for each socket
Function:
■
Energy Management:
2 ports with KWh Meter & Switch Control function
■
Remotely control:
support web control and TCP command control
■
Local control:
manual switch control for local usage
■
Monitoring: monitor
real time status by web browser and LED indicator
■
Environment control:
control by external temperature and humidity sensors.
■
Power budget management:
control by daily/ weekly/ monthly usage.
■
Alarm Warning:
support email warning and TCP trigger command in case of event.
Specifications:
| CPU |
32-bit ARM-7 CPU 80 MHz |
| RAM |
16M Bytes SDRAM; ROM : 8M Bytes Flash
ROM |
| Ethernet |
Lan : 10 /100 M
bps ( Auto Detecting );
Port : RJ-45 Connector
Protocol :ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,PPPoE,FTP, |
| Input power |
90~240VAC/15A/50~60Hz |
| Outlet port |
2 ports Switch Controlled with dual
switch relay(~240VAC/15A) |
| Power info |
Current, Voltage, Frequency, Active
Power, Power Factor, Energy, Power usage |
| Serial Interface |
1. RS-485 – for Temperature,
Humidity, CO2 machine
2. RS-232 – for Extendtion |
| Support API for
System Integrator |
| Micro SD for
Datalog |
| Built-in RTC and
Watch Dog |
| Circuit Breaker
Protect |
| Led Indicator |
SYS, LAN,Socket 1&2,Current |
| Environment |
Operating Temp: 0℃〜60℃
Storage Temp : -10℃〜70℃ |
| Mounting type |
Rack 1U |
|
Dimensions |
35*11*4cm
(W*D*H) |
| Weight |
1.38 Kgm |
| Apply CE/FCC now |
| Warranty |
1 year |
| Web based management software |
Outlet Status
Outlet Switch Controlled
Schedule
Alarm linked Control
Email Warning
User login Management
Threshold Configurable
Event Log (Micro SD) |
|
|
