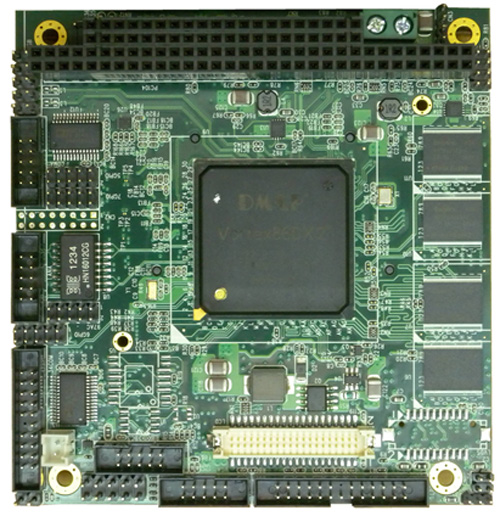

Key Specifications/Special Features:

486DX2-800MHz CPU, 512MB soldered RAM, TFT/LVDS LCD, CRT, LAN x 1, PC/104 Socket, HD Audio, SPI Flash, USB2.0x4, CFast socket, 24-bit GPIO, RS-232x4 (RS-232 x2 + RS-485x2), LPTx1, WDT, ADC, PS2 KB/Mouse, Single +5V

Specification:

■ CPU: 800MHz 486DX2 CPU (1.2GHz in future) 4-way Write through / Write back 256KB L2 Cache, 16KB I-Cache + 16KB D-Cache L1 Cache

■ BIOS: AMI BIOS & LAN boot ROM on chip

■ DRAM on board: 512MB DDR-II SDRAM (max 1GB)

■ CRT VGA: 2D display up to 1280x1024 resolution

■ 100/10M Ethernet x 1: Pin header

■ Bus Type: PC/104 Socket

■ Audio: Support HD Audio Interface for pin Header, External Buzzer for pin Header

■ Optional SPIFlash: SPI Flash 2/4/8/16MB on board

■ USB2.0 Hostx2: USBx4 pin header

■ CFast socket: SATA-II Flash Disk CFast Module

■ CMOS Backup: Backup by 12887 or equivalent

■ 24-bit GPIO (DIO): support 3 byte command

■ COMx4: RS232x4 (Optional RS-232x2 + RS-485x2)

■ Parallel LPT Port: Bi-directional SPP/EPP/ECP port

■ Watchdog Timer: Programmable 1 ~ 512 sec.

■ ADC: 8CH

■ PS/2 Keyboard & Mouse: 5-pin header

■ Power Requirement: Single +5V  power

■ OS support: Windows XPe, WinCE, Linux, DOS

■ Dimension: 92mm x 96mm PC/104 CPU Module

■ Operating Temperature: 0 to 60℃ (optional -40 to 85℃)
