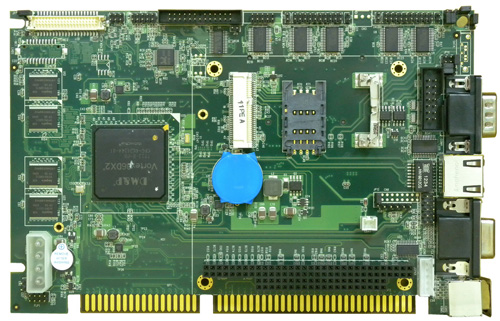

Key Specifications/Special Features:

486DX2-800MHz CPU, 512MB DDR-II SDRAM, TFT/LVDS LCD, CRT, LAN x 1, ISA bus, PC/104, mini-PCIe socket, Audio, SPI Flash, USB2.0x4, CFast socket / SATA, GPIO, RS-232/422/485x7,LPT, WDT, PS/2 KB / Mouse, +5V, Touch

Specification:

■ CPU: 800MHz 486DX2 CPU (1.2GHz in future)

■ DRAM on board: 512MB DDR-II SDRAM (max 1GB)

■ CRT VGA: Pin header

■ LCD interface: 18bit LVDS LCD or 18/24-bit TFT LCD

■ 100/10M Ethernet x 1: Pin header

■ Bus Type: ISA bus & PC/104 Socket

■ Mini PCIe socketx2: half & full mini-PCIe Module

■ Audio: HD Audio

■ SPIFlash: SPI Flash 2/4/8/16MB on board

■ USB2.0 Hostx2: USBx4 pin header

■ CFast socket for SATA Flash Disk Module or optional SATA HDD connector

■ CMOS Backup: 2pin JSP

■ 8-bit GPIO (DIO): optional max. 56-bit GPIO (DIO)

■ COMx7: Jumper selectable RS-232/422/485 x 1 +
RS-232 x 1 (bracket) + RS-232/422/485 x 5

■ Optional 4/5/6-wire Resistive Touch Controller

■ Parallel LPT Port: Bi-directional SPP/EPP/ECP port

■ Watchdog Timer: Programmable 1 ~ 512 sec.

■ PS/2 Keyboard & Mouse: 5-pin header

■ Power Requirement: Single +5V power

■ Dimension: 186mm x 122mm  ISA half card

■ Operating Temperature: 0 to 60℃; Optional-40 to +85℃
