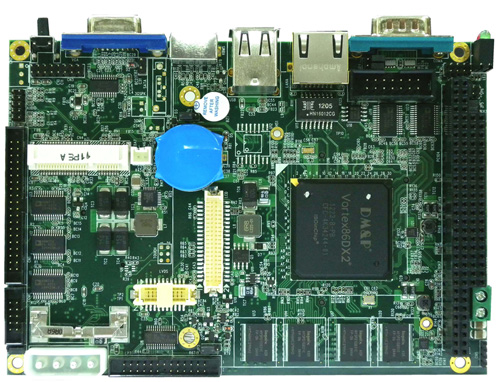

Key Specifications/Special Features:

486DX2-800MHz CPU, 512MB soldered RAM, TTL TFT LCD, CRT, LAN x 1, PC/104 socket, mini-PCIe x 1, Audio, SPI Flash, USB2.0 x 4, CFast/SATA, RS-232x3 + RS-232/422/485x1, LPT, WDT, KB / Mouse, Single +5V; Optional: LVDS, Touch, max. 56-bit DIO, 8V ~28V DCIN, support 3G/WCDMA/HSDPA with SIM socket, COM x 6, mini-PCIe x 2

Specification:

■ CPU: 800MHz 486DX2 CPU (1.2GHz in future)

■ DRAM on board: 512MB DDR-II SDRAM (max 1GB)

■ CRT VGA: DB15 on bracket

■ LCD interface: TTL TFT LCD, optional LVDS

■ 100/10M Ethernet x 1: RJ45 Connector on bracket

■ Bus Type: PC/104 Socket

■ Mini PCIe socketx1: Full-size mini-PCIe socket x 1;
Optional support 3G/WCDMA/HSDPA with SIM socket

■ Optional Mini PCIe socketx2

■ Audio: HD Audio

■ SPIFlash: Optional PI Flash 2/4/8/16MB on board

■ USB2.0 Hostx4: 2 port bracket, 1 port on mini-PCIe,1 port Pin header

■ CFast socket for SATA Flash Disk Module or optional SATA HDD connector

■ CMOS Backup: 2pin JSP or Li battery on board

■ 8-bit GPIO (DIO): optional max. 56-bit GPIO (DIO)

■ COMx4(optional COMx6): RS-232x3+Jumper selectable RS-232/422/485x1+optional RS-232/GPIOx2

■ Optional 4/5/6-wire Resistive Touch Controller

■ Parallel LPT Port: Bi-directional SPP/EPP/ECP port Optional GPIO (DIO)

■ Watchdog Timer: Programmable 1 ~ 512 sec.

■ ADC: 8CH

■ PS/2 Keyboard & Mouse: mini DIM on bracket

■ Power Requirement: Single +5V power DC-IN, Optional 8V ~28V DC-IN

■ Dimension: 146mm x 102mm  3.5” form factor

■ Operating Temperature: 0 to 60℃; Optional-40 to +85℃ Wide Temperature
