Industrial Switch Hub Series




EX9911                                             Industrial Slim Type 8 Port 10/100Mbps, unmanaged Fast Ethernet Switch


Key Specifications/Special Features:



Introduction:

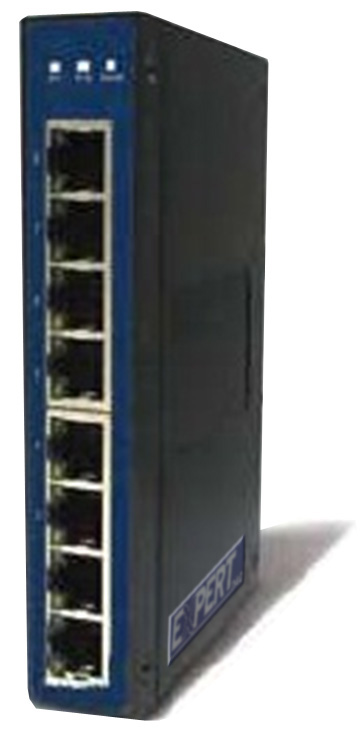

EX-9911 is slim type unmanaged Industrial Fast Ethernet switches with 8 x10/100Base-T(X) ports. EX-9911 supports redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment.




Feature:

■ Provides 8 x 10/100Base-T(X) ports
■ Supports auto-negotiation and auto-MDI/MDI-X
■ Supports store-and-forward transmission
■ Supports flow control
■ Warning system by relay output
■ Rigid IP-30 housing design
■ DIN-Rail and wall mounting enabled



 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX   8


 Ethernet Standard

 		  IEEE802.3 10Base-T Ethernet
 IEEE802.3u 100Base-TX and 100Base-FX
 IEEE802.3x Flow Control and Back Pressure
 IEEE802.3ad for LACP (Link Aggregation Control Protocol)
 IEEE802.1d Spanning Tree
 IEEE802.1w Rapid Spanning Tree
 IEEE802.1s for MSTP (Multiple Spanning Tree Protocol)
 IEEE802.1p Class of Service
 IEEE802.1Q VLAN Tag
 IEEE802.1x User Authentication (Radius)
 Mac Address   8192 MAC address table
 Priority Queues    4
 Processing   Store-and-forward
 Switch Properties   Switching latency : 7μs
 Switching bandwidth : 5.2Gbps
 Max. number of Available VLANs : 4096
 IGMP multicast groups: 1024
 Port rate limiting : user define
 Security Features    Enable/disable ports, MAC based port security
 Port based network access control (802.1x)
 VLAN (802.1Q) to segregate and secure network traffic
 Supports Q-in-Q VLAN for performance & security to expand the VLAN space
 Radius centralized password management
 SNMP v1/v2/v3 encrypted authentication and access security
 Software Features    STP/RSTP/MSTP (IEEE 802.1D/w/s)
 Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
 TOS/Diffserv supported
 Quality of Service (802.1p) for real-time traffic
 VLAN (802.1Q) with VLAN tagging and GVRP supported
 IGMP Snooping for multicast filtering
 Port configuration, status, statistics, monitoring, security
 SNTP for synchronizing of clocks over network
 Support PTP client (Precision Time Protocol) clock  synchronization
 DHCP Server / Client support
 Port Trunk support
 MVR (Multicast VLAN Registration) support
 Network Redundancy    O-Ring
 Open-Ring
 O-RSTP
 STP
 RSTP\
 MSTP
 Warning/Monitoring System    Relay output for fault event alarming
 Syslog server / client to record and view events
 Include SMTP for event warning notification via email
 Event selection support
 RS-232 Serial Console   RS-232 in RJ45 connector with console cable.  Baud rate : 9600bps, 8, N, 1
 Relay   Relay output to carry capacity of 1A at 24VDC
 LED  Power indicator : Power LED * 3 (Green)
 R.M. indicator : Indicate system operated in O-Ring Master mode (Green)
 O-Ring indicator : Indicate system operated in O-Ring mode
 Fault indicator : Indicate unexpected event occurred (Amber)
 10/100TX RJ45 Port : Link/Act (Green), Full duplex/collision (Amber)
 Redundant Input Power  Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
 Power Consumption  5 Watt
 Overload Current Protection  Present
 Reverse Polarity  Protection  Present on terminal block
 Enclosure  IP-30
 Case Dimension  52mm (W) x 106.1mm (D) x 144.3mm (H)
 Weight  735g
 Operating Humidity  5% ~ 95% (Non-condensing)
 Operating Temperature  -40°C~+70°C
 Storage Temperature  -40°C~+85°C
 Installation  DIN Rail and Wall Mount Design
 Regulatory Compliance  FCC Part 15, CISPR (EN55022) Class A
 CE EN61000-4-2 (ESD)
 CE EN61000-4-3 (RS)
 CE EN61000-4-4 (EFT)
 CE EN61000-4-5 (Surge)
 CE EN61000-4-6 (CS)
 CE EN61000-4-8
 CE EN61000-4-11
 Safety  EN60950-1, UL508 (E331061)
 Environmental Test  IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
