Industrial Ethernet Switch Series

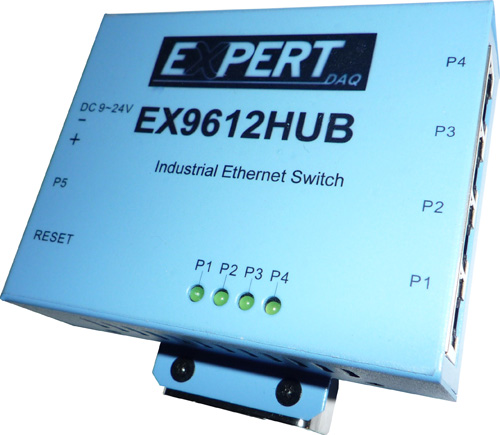

EX9612HUB


Key Specifications/Special Features:



Wide operating temperature rangeIP175DLFI (-20°C to 70°C)

Up to 2K MAC addresses

Support 10/100Mbps and auto-polarity for 10Mbps only

Broadcast storm protection

Auto MDI-MDIX

Layer2-4 Multi-Field classifier Support traffic policy

9 to 24VDC Power inputs

Industrial iron case

Supports screw terminal or DC-JACK

Low power consumption




Product Features



Technology

Standards

IEEE802.1Q  IEEE802.3  IEEE802.3u  IEEE802.3x

Max forwarded packet length 1792 bytes(MAX)

Address Table Size

2K MAC addresses 4-way Hashing Algorithm Individual/Multicast MAC

Processing Type

Store-and-Forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control

Power

Input Voltage

9 to 24VDC Terminal Block or DC-JACK

Reverse Polarity Protection

Overload Current Protection

Power Consumption:

2W Max. 0.35A@5VDC

Mechanical

Casing:

iron case (optional:Din-Rail kit )

Dimensions

70mm (W) x 90mm (D) x 28mm (H)

Weight:

0.2Kg (0.44lb.)

Installation

screw terminal OR DC-JACK

Environment

Operating Temperature

-20°C to 70°C

Storage Temperature

-40°C to 85°C

Ambient Relative Humidity

5% to 95% (non-condensing)
