Fiber Series

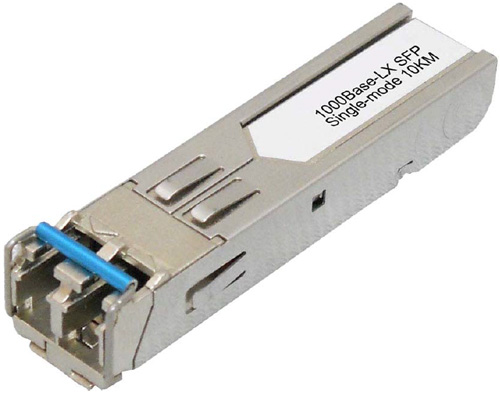

EX9543G-SFP                                                                                  Small Form Factor Pluggable (SFP) transceiver


Key Specifications:



The EX-9543G-SFP Small Form Factor Pluggable (SFP) transceiver module is specifically designed for the high performance integrated duplex data link over single-mode or multi-mode optical fiber. The transceiver module is compliant with the SFP Multisource Agreement (MSA). With the hot pluggability, the SFP module offers an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating on line. The EX-9543G-SFP transceiver using a long wavelength (1310nm) FP laser diode enable data transmission up to 10km on a single-mode (9/125μm) optical fiber





Features:



SFP Multi-Source Agreement compliant
1.0625Gbps Fiber Channel FC-PI 100-SM-LC-L compliant
1.25Gbps IEEE 802.3 1000BASE-LX compliant
Serial ID functionality support
Single +3.3V Power Supply
LC duplex receptacle
Class 1 laser safety standard IEC 825 compliant
Low power dissipation
