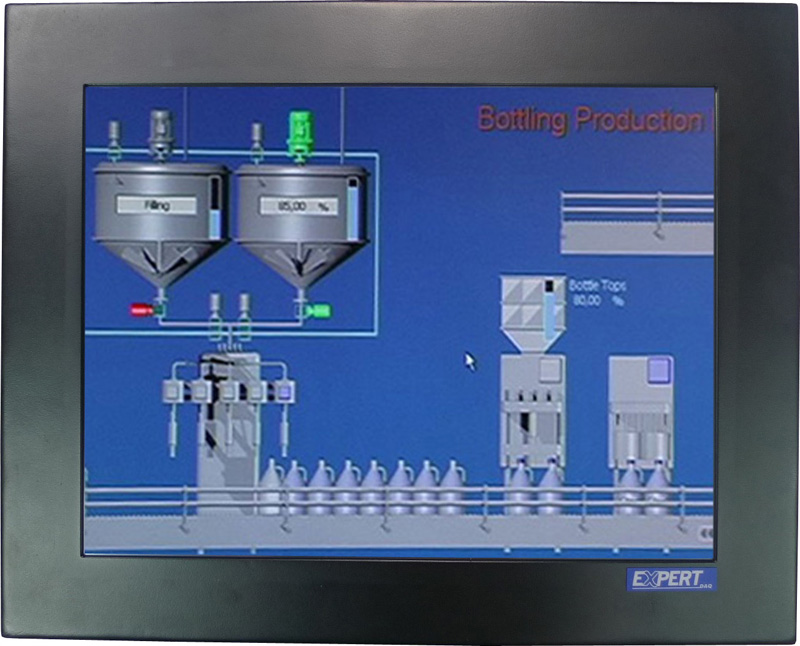

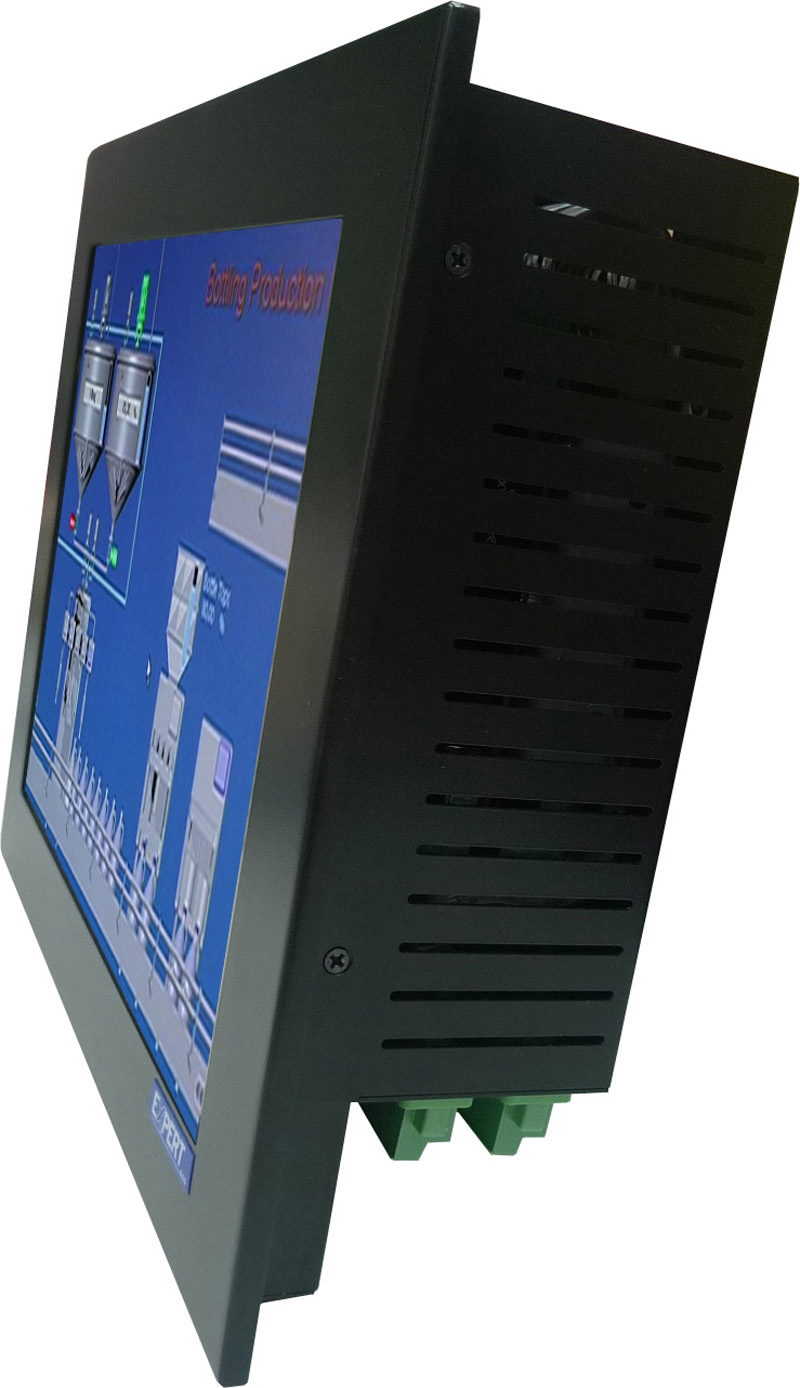

EX97550-DAQ                                                                                                                      17" ExpertDAQ system


Key Specifications/Special Features:



17“ LCD Touch with Intel® Atom™ D2550 processor
 12V only single voltage design for AT/ATX Systerm Power
 On-board DDR3 1066 MHz 2/4GB SDRAM
 Support VGA and 24-bit LVDS with dual-display
 Complete I/O with 4*USB, SATA 3Gb/s, 4*COM and DVI
 Dual GbE & Mini PCIe(Half/ Full)
 Resistive/Capacitive(optioal) touch; Metal/Aluminum(optional)
 DI/DO/AI/AO(Optional); Terminal Block ready; External Power Supply(10~30V DC)
 Utility of EX-9000& DEMO kit& DLL ready
 ExpertView of SCADA (DEMO kit included w/ EX9000 driver deady)









Order information:


1. DIO/ AIO or ModBus optional;
2. GSM/GPRS/WiFi optional
2. License of ExpertView of SCADA
3. 8"/10.4"/12.1"/15”/17”/19” ready for selection
4. OEM/ODM Welcome





     larger photo
     larger photo
     larger photo
   User Manual
Driver
Dimension



Specifications (ExpertDAQ System):



 LCD Panel Specification

model

EX98550-DAQ

 EX90550-DAQ EX92550-DAQ EX95550-DAQ EX97550-DAQ EX99550-DAQ
Viewable Size Image 8" 10.4" 12.1" 15" 17" 19"
Resolution 800*600 800*600 800*600 1024*768 1280*1024 1280*1024
Brightness 250cd/m2 400cd/m2 450cd/m2 250cd/m2 250cd/m2 250cd/m2
Active Display Area 162.0*121.5 211.2*158.4 246*184.5 304.128*228.096 337.92*270.336 376.32*301.056
Pixel Pitch 0.2025*0.2025 0.264*0.264 0.3075*0.3075 0.297*0.297 0.264*0.264 0.294*0.294
Contrast Ratio 500:1 400:1 700:1 600:1 1000:1 1000:1
Display Color 16.7M 262K 16.7M 16.7M 16.7M 16.7M
Response time 25ms 25ms 25ms 25ms 25ms 25ms
Viewing Angle U/D 50/70
L/R70/70		 U/D 60/70
L/R70/70		 U/D 65/75
L/R80/80		 U/D 80/80
L/R80/80		 U/D 80/80
L/R85/85		 U/D 80/80
L/R70/70
Power Consumption 40W 40W 40W 45W 45W 45W

Touch (Optional)

5 -wires Resistive touch

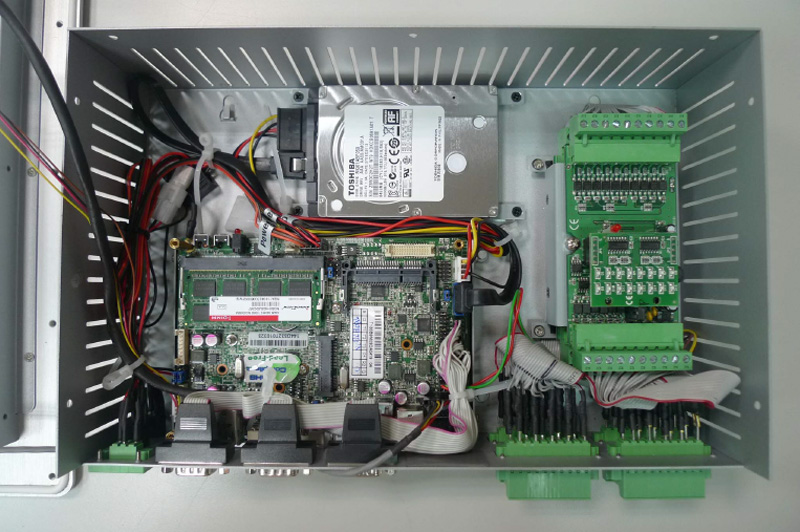

Specifications (Main Board):



 System Specification

 Processor

Intel® dual core Atom™.D2550 1.86GHz processor

 Chipset

INTEL® NM10

 BIOS

AMI 16MB SMT Flash ROM

 Memory

1 * DDR3 1066MHz Single CH SO-DIMM up to 4GB
 Expansion slots 1*Mini PCI-E
 Storage 1 * Serial ATAII 3Gb/s connectors
1 * CFast card socket
 Audio Realtek ALC662 HD Audio CODEC with 4-Channel

 Graphic

GMA 3650/Graphic core speed 640MHz

 Ethernet

2 * RTL8111E PCI-EVL Gigabit LAN
 USB Embedded 6*USB 2.0/1.1
 LVDS Onboard 1 * 24-bits Dual channel & 1 * 18-bits Single LVDS connectors

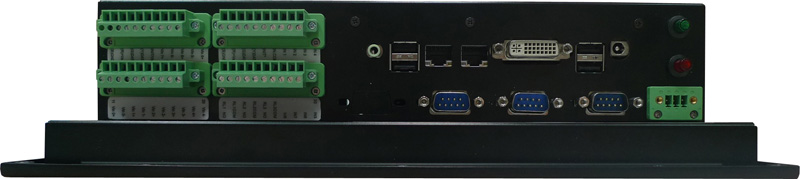

 Rear Panel I/O

 4 * USB 2.0/1.1 ports
2 * RJ-45 ports & 2*RS232
Line-out port
1 * DVI-I port
1 x Audio jacks (Line-out)
1 * 12V DC-IN JACK
 Internal I/O 2 * USB 2.0 header
1 * Audio header
System/Chassis/NB Fan Connectors
1 * GPIO header
1 * CFast card reader socket
DIY switch x2 (reset & power button)
2 * COM header (COM3 for RS232,COM4 for RS485 Default)

 Power Supply

 12V input only
AT/ATX mode select
4-pin (2x2) power connector

 Fan Connector

1 x 3-pin CPU fan, 1 x 3-pin system fan

 Power Consumption

DV 12V

 Temperature

operating within 0°C ~ 60°C, storage within -20°C ~ 85°C

 Form Factor

3.5" SBC dorm factor (146 mm x 102 mm)

 Certificate

CE,FCC,RoHS,ERP

 Functional

 ATM, Automation, Medical Equipment, Security, General Application, Transportation, Digital Signage, Kiosk, POS machine, LCD TV PC, Embedded Fanless application
