EX98623                                                                                            Intel® Socket G Core™ i5/i7


Key Specifications/Special Features:



Support Wide Range DC (10 ~ 28V) Power Input
Support Serial Port with 5V/12V Power Output
Support RS-485 Auto-flow Function
Support Various Video Interfaces (DVI-I + DVI-D)
Support Outside Accessible CFast Slot and SIM slot
Support Optional WiFi or HSUPA Wireless Connection
Support Intel® AMT
Support RAID 0/1
Rugged Design for Shock/Vibration Protection
Simple Installation/Maintenance
Intel® SSD Compatible






Specifications:



 System Specifications
 Processor  Intel® Socket G Core™ i5/i7 series processors
 System Chipset  Intel® QM57
 System Memory  2 x 204-pin Dual Channels DDR3 SO-DIMM Sockets up to 8GB at 800/1066MHz
 Graphics   Integrated Intel® HD Graphics controller
 ATA  2 x Serial ATA ports with 300MB/s HDD transfer rate
 LAN Chipset  1 x Intel® WG82583V Gigabit Ethernet controller
 1 x Intel® WG82578DM Gigabit Ethernet PHY w/ iAMT
 Watchdog Timer  1~255 levels reset
 I/O
 Serial Port   1 x DB-44 female connector
 Support Serial Port (Except COM4) with 5V/12V Power Output
 Support 4 x RS-232 ports (COM 4 is isolated RS-232/422/485 selectable)
 USB Port   8 x USB 2.0 ports
 LAN   2 x RJ-45 ports for Gigabit Ethernet
 Video Port    1 x DVI-I female connector for Digital Video output
 1 x DVI-D female connector for Digital Video output
 Selectable Port   1 x 16-bit digital I/O, 8 in/8 out
 SPP/EPP/ECP mode selectable for LPT
 Audio   Mic-in/Line-out (6W pre-amplified)
 KB/MS   1 x 6-pin Mini-DIN for Keyboard and Mouse
 GSM/UMTS   Up to HSUPA 3.75G (optional Mini-card)
 Expansion Bus   2 x PCIe x2 slot
 1 x Mini-card slot interconnected with SIM card socket for optional WiFi or HSUPA module
 1 x SIM socket (outside accessible)
 Environmental
 Operating Temperature  -20 ~ 55°C (-4 ~ 131°F), w/ air flow designed
 Storage Temperature   -40 ~ 85°C (-40 ~ 185°F)
 Relative Humidity   10 ~ 95% @ 40°C (non-condensing)
 Vibration   3 Grms/5~500Hz/random operation
 Shock & Crash   Operating 20G (11ms), Non-operating 40G with HDD
 Operating 40G (11ms), Non-operating 60G with CF/SSD
 Qualification
 Certification   Certification CE, FCC
 Power Requirement
 Power Input   DC 10~28V input (w/ 4-pin DC input terminal block combine remote power on/off switch)
 Power Consumption

 Max. 50W (w/o I/O card)

 Storage
 Type   1 or 2 x 2.5" drive bay for HDD/SSD w/ 9.5mm height limit
 1 x CFAST Socket which can be outside accessible
 Mechanical Specifications
 Construction  Aluminum alloy
 Mounting  Support wall-mounting/Din rail mounting
 Net Weight  4.2 kg (9.24 lb)
 Dimension (WxDxH)  195 x 268 x110 mm (7.68" x 10.55" x 4.33")

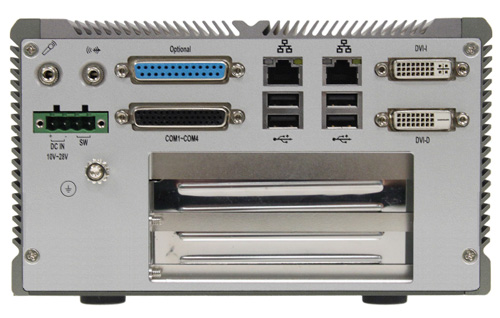

     larger photo

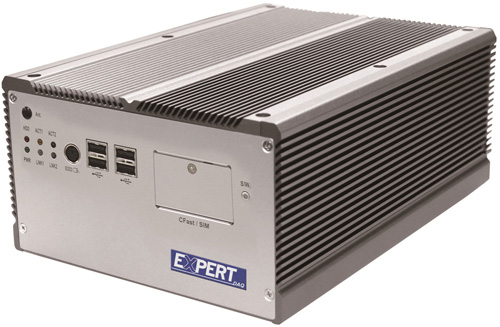

     larger photo
