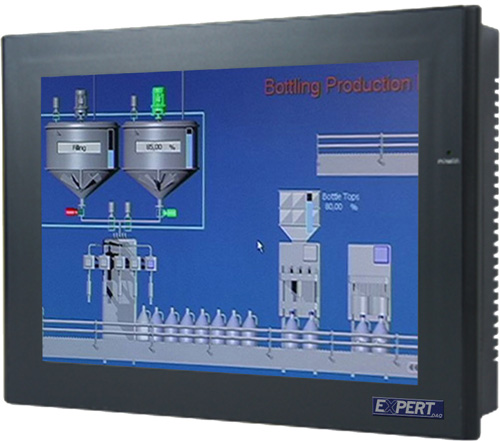

EX96103-A                                                                 10.4"  Intel Atom Low Power Fanless HMI Series


Key Specifications/Special Features:



Features
Fanless design
Intel® Atom Z510P 1.1 GHz FSB 400 MHz
Z530P 1.6 GHz FSB 533 MHz for option
Intel US15WP
1GB DDR2 400MHz DRAM built-in default
Intel GMA500 built-in US15W
10.4” High brightness TFT LCD with resolution of 800x600






Specifications:



 System Specifications
 Processor  Intel® Atom Z510P 1.1GHz CPU Default, upgrade to Z530P 1.6GHz CPU
 System Memory  1GB DDR2 400MHz DRAM default
 System Chipset  Intel® US15WP
 External I/O Port

 4 x USB 2.0 ports,

 1 x RJ-45 LAN ports,

 1 x DB-9 RS232 (COM3),

 1 x DB9 RS232/422/485 (COM1), default: RS-485

 1 x DC power input

 Solid Storage Disk  1 x 2.5” SATA HDD/m-SATA
 Expansion Slots  None
 Wireless LAN  Wireless LAN Module via mini-PCIe (Optional)
Antenna is build-in on the rear side (Internal Antenna)
 LCD
 Display Type  10.4” TFT-LCD
 Max. Resolution  800x600
 Max. Color  262K
 Luminance (cd/m2)  250
 View Angle  H:130° / V:110°
 Backlight Lifetime  20,000hrs
 Touch Screen
 Type  Analog resistive
 Power Supply
 Power Input  DC 9~32V
 Mechanical Specifications
 Construction  Plastic molding housing
 IP Rating  IP 65 compliant front panel
 Mounting  Panel / VESA 75x75 Mount
 Dimension  224*149*65
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature  -20~60 C
 Storage Humidity  10~90% @40℃, non-condensing
 Certificate  Meet CE/FCC Class A
