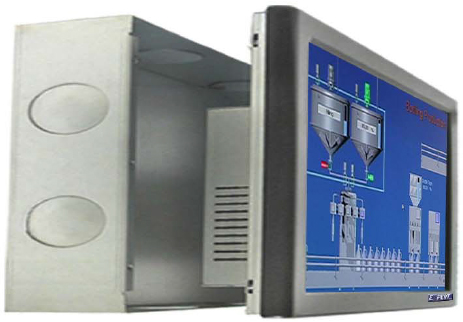

EX936615D-AL                                                                                                      In wall mount 15” Panel PC


Key Specifications/Special Features:



Features


Atom D2550 1.86GHZ CPU
2GB DDRIII
Win embedded 7 (standard)
8GB CF Card
Resistive touch screen
15” XGA 1024*768 IP65 Front
Fanless Panel PC



 H/W specification:



LCD Panel

Viewable Size Image

15"

Resolution

1024x768

Brightness

250cd/m2 (typ.)

Active Display Area

304.128 (H) x 228.096 (W)

Pixel Pitch

0.297 (H) x 0.297 (V)

Contrast Ratio

600:1 (typ.)

Display Color

16.7M

Response time

25ms

Viewing Angle

U/D 80/80; L/R 80/80

Power Consumption

45W

System

Form Factor

48 x 102mm 3.5” SBC Form Facto

Processor

INTEL® Cedar Trail-D Processor D2550 (1.86GHz)

System Chipset

INTEL®NM10 Express chipset

System Memory

Support 1 * DDR3 1066MHz Single CH up to 4GB (D2550)

BIOS

AMI 16MB SMT Flash ROM

LCD Support

Onboard 1 * 24-bits Dual channel & 1 * 18-bits Single LVDS connectors

Ethernet

2 * RTL8111E PCI-EVL Gigabit LAN

Audio

Realtek ALC662 HD Audio CODEC with 4-Channel

Serial

1 x RS-232, 1 x RS-232/422/485*

USB

Embedded 7 * USB 2.0/1.1

Graphics

Support DirectX 9 Graphics up to 640MHz

Storage

1 * Serial ATAII 3Gb/s connectors
1 * CFast card socket

Expansion Slots

1 * MINI PCI-E

Operating Temperature

-20 ~ 60°C

I / O Interface

4 * USB 2.0/1.1 ports
2 * RJ-45 ports
1 * Line-out port
1 * DVI-I port 1
1 * 12V DC-IN JACK
3 * RS232
1 * RS232/422/485
1 * Power Key /Power LED
1 * Rest Key
1 * HDD LED
