EX93597A                                              15” Ultra slim Intel® N270 1.6GHz IP 65 stainless steel fanless panel PC


Key Specifications/Special Features:



Features
Fanless
Intel® Atom™ N270 1.6GHz processor
Slim, all stainless steel enclosure
Total NEMA 4/IP 65 compliant
Optional touch screen resistive or CFG
DC 11~32V wide-range power input






Specifications:



 System Specifications
 Processor  Intel® Atom™ N270 1.6GHz processor built-in, FSB 533 MHz
 System Memory  1 x 200-pin 400/533 MHz SO-DIMM slot up to 2GB, default 1GB/533 MHz
 System Chipset  Intel® 945GSE + ICH7M
 External I/O Port

 2 x USB 2.0 connector
 2 x RJ-45 connector
 1 x DB-9 RS-232 (COM 1)
 1 x DB-9, COM2 (RS-232/422/485 selection, default RS-232)
 1 x DB-15 VGA
 1 x Audio, Line-out
 1 x DC Power input, full function I/O ports

 Storage  1 x 2.5”SATA HDD
 1 x CF slot (Internal)
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 LCD
 Display Type  15” TFT-LCD
 Max. Resolution  1024x768
 Max. Color  262K
 Luminance (cd/m2)  350
 View Angle  H:120° / V:100°
 Backlight Lifetime  50,000hrs
 Touch Screen (Optional)
 Type  Analog resistive (optional)
 Light Transmission  80%
 Power Supply
 Power Input  DC 11~32V
 Mechanical Specifications
 Construction  Stainless steel front bezel + housing
 IP Rating  Total IP 65
 Mounting  Panel / VESA 75x75 Mount
 Dimension  399(W)x324(H)x53(D)mm
 Net weight   7.9 kgs
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature   -20~60 C
 Storage Humidity   10~90% @40 °C, non-condensing
  Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93597A  15” Intel® Atom™ N270 1.6GHz ultra slim IP 65 stainless steel fanless panel PC
 EX-93597AT   15” Intel® Atom™ N270 1.6GHz ultra slim IP 65 stainless steel fanless panel PC w/Touch screen

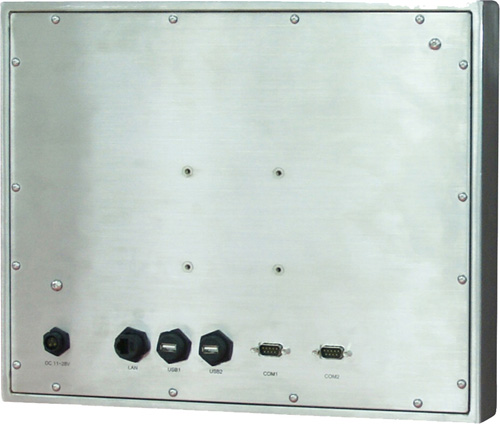

     larger photo

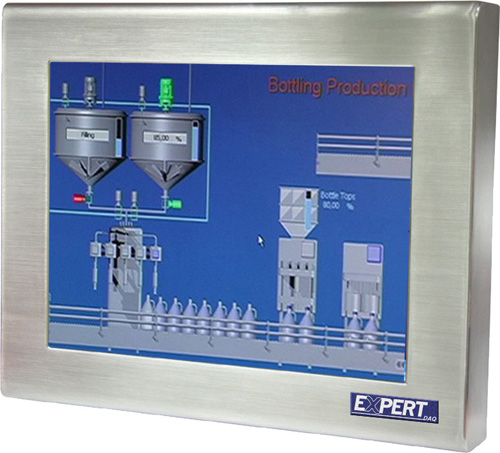

     larger photo
