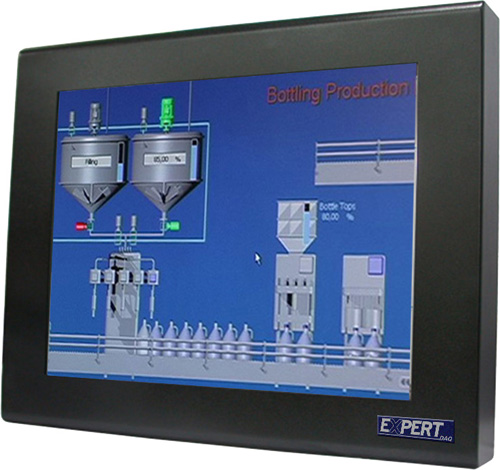

EX93285A                                                 12.1” Intel N270 1.6GHz Ultra slim 5 sides IP 65 steel fanless panel PC


Key Specifications/Special Features:



Features
Fanless
 Intel® Atom™ N270 1.6GHz processor
 IP 65 compliant except I/O side
 Resistive or GFG touch for option
 DC 11~32V wide-range power input





Specifications:



 System Specifications
 Processor  Intel® Atom™ N270 1.6GHz processor built-in, FSB 533 MHz
 System Memory  1 x 200-pin 400/533 MHz SO-DIMM slot up to 2GB, default 1GB/533 MHz
 System Chipset  Intel® 945GSE + ICH7M

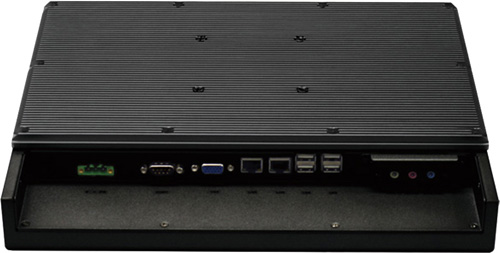

 External I/O Port

 4 x USB ports
 2 x RJ-45 ports
 1 x DB-9 RS-232 (COM 1)
 1 x DB-15 VGA
 1 x MIC, Line-in, Line-out
 1 x 3-pin DC Power input terminal
 Storage  1 x 2.5”SATA HDD
  1 x CF slot (Internal)
 Expansion Slots  None
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 LCD
 Display Type  12.1” TFT-LCD
 Max. Resolution  800x600
 Max. Color  262K
 Luminance (cd/m2)  350
 View Angle  H:140° / V:110°
 Backlight Lifetime  50,000hrs
 Touch Screen (Optional)
 Type  Analog resistive
 Light Transmission  80%
 Power Supply
 Power Input  DC 11~32V
 Mechanical Specifications
 Construction  Steel front bezel and aluminum extrusion back cover
 IP Rating  IP 65 except I/O side
 Mounting  Panel / VESA 75x75 Mount
 Dimension  330(W)x260(H)x58.3(D)mm
 Net weight   5 kgs
 Environmental
 Operating Temperature  0~50 ﾟC
 Storage Temperature    -20~60 ﾟC
 Storage Humidity    10~90% @40 °C, non-condensing
  Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93285A  12.1” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC
 EX-93285AT   12.1” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC w/Touch screen
