EX92674A                                                                        Fanless Box PC with Intel Core 2 Quad/Duo 2 Duo Penryn CPU


Key Specifications/Special Features:



Features
Support Intel Socket P Intel Core 2 Quad / Core 2 Duo 45nm Processor,
FSB1066/800/667MHz, 6MB L2 cache
Intel GM45 + Intel ICH9M-E
Fanless Design
2 x 200-pin DDR2 SO-DIMM slot, up to 4GB 800 MHz SDRAM
Support 1 x 2.5” SATA HDD
1 x External CF Slot

Support 1 x PCI Slot
DC 11-32V Wide Range Power Input






Specifications:



System

Processor

Support Intel® Socket P Core 2 Quad / Core 2 Duo, 45nm Processor, FSB 1066/800/667MHz, 6MB L2 Cache
Chipset Intel® GM45 + Intel ICH9M-E
Memory 2 x 200-pin DDR2 SO-DIMM slot, up to 4GB 800 MHz SDRAM

I/O

Outside I/O ports

1 x PS2 Keyboard + Mouse
3 x DB9 (COM1~3)
1 x DVI-D connector
1 x DB-15 VGA
1 x HDMI Port
2 x RJ45 connector (GbE LAN)

Expansion Bus

1 x PCI Slot

Environmental

Operating Temp.

0 C ~ 50 C (TBD)

Storage Temp.

-20 C ~ 60 C (TBD)

Storage Humidity

10 to 90% @ 40 C, non-condensing

Qualification

Certification

Meet CE / FCC Class A

Power Requirement

Power Input

DC 11~32V

Storage

Type

1 x 2.5” SATA HDD bay, 1 x External CF slot (Optional)

Mechanical

Construction

Alumina Molding Heatsink + Heavy Duty steel Chassis

Mounting

Support wall-mount

Color Silver

Dimensions

102(L)x195(W)x268(D)mm

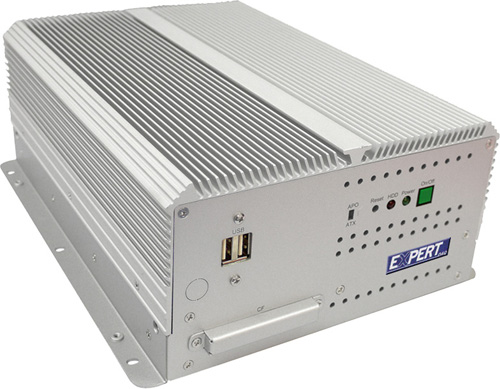

     larger photo

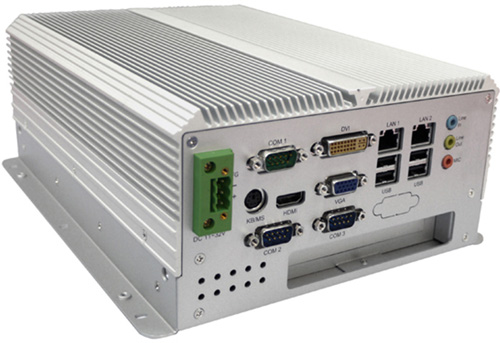

     larger photo
