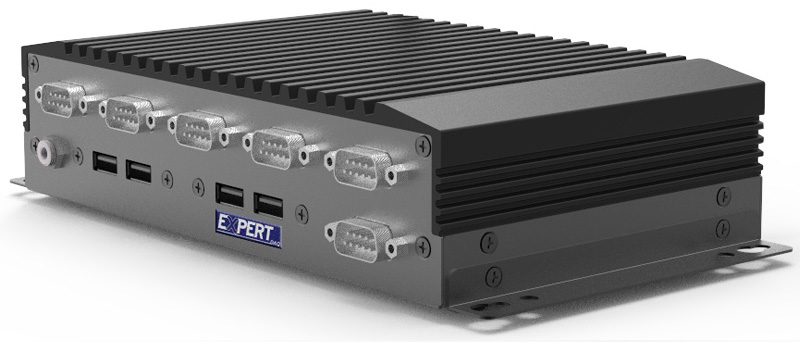

EX92290                                                                            Fanless BOX PC w/Intel SkyLake/Kaby Lake processor


Key Specifications/Special Features:



Features

Intel® SkyLake/Kaby Lake Processor
HDMIx1, VGAx1, COMx6,USB 2.0x4,USB 3.0x2
mPCI-Ex1, 64G SSD, 4G memory
Support Redhat enterprise 7.0/ Linux Kernal 4.11/Win 10 IoT
-20 ~ 60 degree C







Specification:



 System
CPU  SkyLake
i7-6500U(Dual Core, 4M Cache, up to 3.10 GHz)
i5-6300U(Dual Core, 3M Cache, up to 3.00 GHz)
i5-6200U(Dual Core, 3M Cache, up to 2.80 GHz)
i3-6100U(Dual Core, 3M Cache, up to 2.30 GHz)
Kaby Lake
i7-7500U(Dual Core, 4M Cache, up to 3.50 GHz)
i5-7300U(Dual Core, 3M Cache, up to 3.50 GHz)
i3-7100U(Dual Core, 3M Cache, up to 2.40 GHz)
Celeron 3965U (Dual Core, 2 MB Cache, 2.2 GHz)
System Memory  SO-DIMM DD3L 1333/1600 Up to 32GB
Graphic SkyLake Intel® HD Graphics 520
Kaby Lake Intel® HD Graphics 620 / Intel® HD Graphics 610
BIOS  AMI uEFI BIOS
O.S Support Windows 10 / Linux Kernel 4.11/Red Hat 7.0
 Storage device
mSATA SSD  mSATA SSD from miniPCI socket
HDD/SSD  Optional 2.5” HDD or 2.5” SSD x 1(SATA 3.0 by cable)
 Front I/O Ports
DC 19V in
(9~28V wide voltage range)
Yes
Power Button Yes
Reset Button Yes
VGA Yes
HDMI Yes (HDMI 1.4)
DP Yes
LAN 1 Yes
LAN 2 Yes
USB 3.0 x 2 Yes
Antenna Hole Antenna x 2
 Rear I/O Ports
USB 2.0 x 4 Yes
COM1 RS232 DB9
COM2 RS232/485 DB9
COM3 RS232 DB9
COM4 RS232 DB9
COM5 RS232 DB9
COM6 RS232 DB9
Line out Yes
Antenna Hole Antenna x 2
 Others
LED Indicator Power, HDD
AC Adapter DC19V, 65W
Expansion Slot 1 x Mini-PCIe socket support mSATA
1 x Mini-PCIe socket for optional Wi-Fi or 3G / 4G LTE
Color Black
Material Top Cover: Aluminum, Top & Buttom Case: SECC
Certifications CE/FCC
Dimension 20Wx12.24Dx5.5H cm
Weight 1.9kg
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Shock Protection SSD: 20G (0.5 ms, half sine wave, no damage)
Vibration Protection Vibration protection w/ SSD condition:
0.5 Grms (Random, 5~800 Hz, no damage)
Storage Humidity 10% ~ 90%RH (non-condensing)
