Panel / Box / Monitor / System Series




EX91915BP                                                                                  15" Bay Trail E3845/N2930 Panel PC


Key Specifications/Special Features:



Features


Flat front panel touch screen
Fanless design
Intel Bay Trail N2930(1.83GHz) CPU built-in/E3845(1.91GHz ) for option
Onboard 2GB DDR 3L 1600 MHz/4GB(option)
9~36VDC wide-ranging power input
IP65 compliant front panel
Projected capacitive touchscreen support 7H anti-scratch surface















Specifications:

     larger photo
     larger photo
   User Manual
Driver
Dimension
 System Specifications
   EX-91907B/BP  EX-91908B/BP  EX-91910B/BP  EX-91912B/BP  EX-91915B/BP
 Processor  Intel® Bay Trail N2930(1.83GHz) Processor/E3845(1.91GHz) for option
 System Memory  On Board 2GB DDR3L 1600 MHz/4GB (option)
 System Chipset  SoC

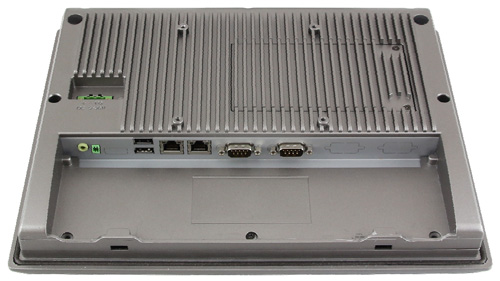

 External I/O Port

 1 x USB 2.0 type A

 1 x USB 3.0 type A
 2 x RJ-45 GbE ports
 1 x DB-9 RS-232/422/485 COM1, Default RS-232
 1 x DB-9 RS-232 COM2
 1 x Audio Line-out
 1 x HDMI port (reserved, no printing)

1 x 3-pin Terminal Block DC power input

 1 x 2-pin connector for power on/off button

 Storage  1 x MO-297 SATA HDD bay, up to 64GB for EX91907B/BP, EX91908B/BP
 1 x 2.5" SATA HDD bay, for EX91910B/BP, EX91912B/BP, EX91915B/BP

 1 x SD slot, up to 32GB
 Expansion Slots  1 x Internal Mini PCle slot (full size)
 OS Support  Windows Embedded Compact 7, Windows 7, Windows Embedded Standard 7, Windows 8,
 Windows Embedded 8 Standard, Windows 8.1,
 Windows Embedded 8.1 Industry
 Display
 Display Type 7"  8" 10.1" 12.1" 15"
 Max. Resolution 800x480 800x600 1280x800 800x600 1024x768
 Max. Color 262K 16.2M 16.2M 16.2M 16.2M
 Luminance (cd/m2) 350 350 350 450 300
 Contrast Ratio 400:1 500:1 800:1 800:1 800:1
 View Angle 140(H)/110(V) 140(H)/125(V) 160(H)/160(V) 160(H)/140(V) 170(H)/170(V)
 Backlight Lifetime  40,000 hrs 40,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
 Touch Screen - Resistive Touch Window Type (for EX91907B/EX91908B/EX91910B/EX91912B/EX91915B)
 TS Control IC  Penmount 6000 on Board
 Interface  USB Interface
 Light Transmission   Over 80%
 Touch Screen - Projected Capacitive Type (for EX91907BP/EX91908BP/EX91910BP/EX91912BP/EX91915BP)
 TS Control IC  Chip on tail
 Interface  USB Interface
 Light Transmission   Over 90%
 Power Supply
 Power Input  DC 9~36V
 Mechanical Specifications
 Mounting Panel / VESA 75x75 Mount Panel / VESA 100x100 Mount
 Dimension 202x149x39 231x176x50 285x189x49 319x245x52 410x310x55
 Color   RAL 9007
 Construction  Aluminum Die-casting front bezel and chassis
 IP Rating  IP65 compliant front panel
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature  -20~60 C
 Storage Humidity  10~90% @40℃, non-condensing
 Certificate  CE/FCC Class A
